E+E Product Finder
14 Products out of 63
EE074
Temperature Probe with Modbus RTU
- WORKING RANGE -70…105 °C (-94…221 °F)
- ACCURACY ± 0.1 °C (± 0.18 °F)
- OUTPUT Modbus RTU
- SUPPLY 24 V DC
EE300Ex-M3
Intrinsically Safe Temperature Sensor
- Measuring range -70...200 °C (-94…392 °F)
- Accuracy ±0.2 °C (±0,36 °F)
- Pressure range 0.1...20 bar (1.45…290 psi)
- Output 4-20 mA (2-wire)
- Supply 24 V DC
EE310
High-End Humidity and Temperature Sensor for Industrial Applications
- Measuring range - Humidity 0...100% RH
- Measuring range - Temperature -40...+180 °C (-40...356 °F)
- Pressure range 0.01... 20 bar (0.15...300 psi)
- Analogue output 0-1 V / 0-5 V / 0-10 V 0-20 mA / a-20 mA
- Digital interface RS485 with Modbus RTU Ethernet PoE with Modbus TCP
- Accuracy ±0.95% RH ±0.1 °C (0.18 °F)
EE431
Duct and Immersion Temperature Sensor
- Measuring Range: Duct sensor (probe tip) -40...+110 °C (-40...230 °F)
- Measuring Range: immersion well (probe tip) -40...+130 °C (-40...+266°F)
- Accuracy active output ±0.1 °C (±0.18 °F)
- Analogue output 0-10 V or 4-20 mA (2-wire)
- Digital interface RS485 with Modbus RTU
- Protection class IP65 / NEMA 4X
- Supply 24 V AC/DC
EE451
Wall Mounted Temperature Sensor
- Operating temperature -40…70°C (-40…158 °F)
- Accuracy active output ±0.3 °C (±0.54 °F) ±0.1 °C (±0.18 °F) (TT2 version)
- Analogue output 0-10 V or 4-20 mA
- Digital interface RS485 with Modbus RTU
- Protection class IP65 / NEMA 4X
- Supply 24 V AC/DC
EE461/EE462
Cable Temperature Sensor
- Operating temperature - EE461 -30...105 °C (-22...221 °F)
- Operating temperature - EE462 - Glass fibre 0...350 °C (32...662 °F)
- Operating temperature - EE462 - Silicone -60...180 °C (-76...356 °F)
- Protection class IP67 / NEMA 4
- Insulation resistance typ. > 100 MΩ at 20 °C (68 °F)
EE471
Temperature Sensor with Remote Probe
- Operating temperature remote probe: -30...105 °C (-22...221 °F) electronics: -30...70 °C (-22...158 °F)
- Accuracy active output ±0.3 °C (±0.54 °F)
- Analogue output 0-10 V or 4-20 mA
- Digital interface RS485 with Modbus RTU
- Protection class IP65 / NEMA 4X
- Supply 24 V AC/DC
HC103M2
Very Fast Humidity Sensor for Radiosondes
- Nominal capacitance C0 (at 30°C / 86°F) 160 ± 40 pF
- Sensitivity 0.55 pF / % RH
- Working range humidity 0...100% RH
- Working range temperature -80...60 °C (-112...140 °F)
- Linearity error (0...98% RH) < ± 2% RH
- Response time t63 < 3 s at 23°C /< 15 s at -20°C
HMC03M
Heated Humidity Sensing Element for Radiosondes and Weather Balloons
- Nominal capacitance C0 (at 30 °C / 86 °F) 120 ± 40 pF
- Sensitivity (for C0 = 120 pF, in average) 0.41 pF / % RH
- Response time t63 (see Graph for details) < 8 sec. at -30 °C (-22 °F) < 11 sec. at -40 °C (-40 °F)
- Working range temperature -80...60 °C (-112...140 °F)
- Working range humidity 0...100 % RH
- Linearity (0...98% RH) < ± 2 % RH
Omniport 40
Multifunctional Hand-Held Meter
- Power Supply 4x AA rechargeable NiMH batteries
- Connections 2x 5-pin M12 connection
- Internal memory Up to 1 million measuring points
- Environmental Conditions (operation) -5...+50 °C (+23...+122 °F); 0...85 % RH non-condensing
- Dimensions 170 x 78 x 38 mm (6.69 x 3.07 x 1.50")
- Protection rating IP67
Sigma 05
Modular Sensor Platform
- MAX. NUMBER OF SENSINGS PROBES 3
- MAX. NUMBER OF MEASURANDS (* 2 ON THE ANALOGUE OUTPUTS / 3 ON THE DISPLAY) 5
- PROBE INTERFACE RS485
- PROTOCOL Modbus RTU
- ANALOG OUTPUTS 0 - 1 V / 2.5 V / 5 V / 10 V 0 / 4 - 20 mA (3-wire)
- ACCURACY OF ANALOGUE OUTPUTS AT 20 °C (68 °F) (*FS = FULL SCALE) 0.02 % FS for 0 - 10 V and 0 - 20 mA
- PROTECTION RATING IP65 / NEMA 4

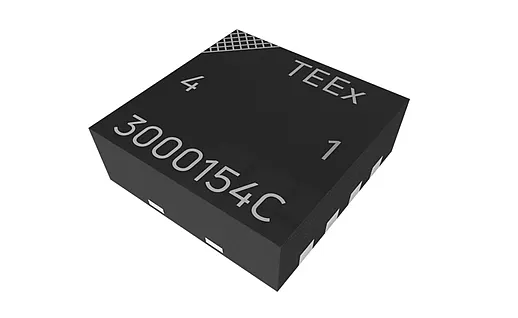

TEE301
Cost Optimised Digital Temperature Sensing Element
- Measuring range -40...125 °C (-40...257°F)
- Accuracy up to ± 0.2 °C (0.36 °F)
- Supply Voltage 2.35 - 3.6 V
- Digital interface I²C
- I²C pin selectable adresses up to 4
- Dimensions (L x W x H) 2.5 x 2.5 x 0.9 mm (0.0984" x 0.0984" x 0.0354")
